Heavy Quarkonia Get a Relativistic Upgrade

by

Author: Denis Avetisyan

New calculations refine our understanding of how heavy quarks fragment into excited quarkonium states, improving predictions for high-energy particle collisions.

Charm-quark fragmentation functions into charmonium states-specifically <span class="katex-eq" data-katex-display="false">D(c \to h_c)</span>, <span class="katex-eq" data-katex-display="false">D(c \to \chi_{c0})</span>, <span class="katex-eq" data-katex-display="false">D(c \to \chi_{c1})</span>, and <span class="katex-eq" data-katex-display="false">D(c \to \chi_{c2})</span>-are shown to be significantly influenced by relativistic corrections of order <span class="katex-eq" data-katex-display="false">\mathcal{O}(v^2)</span>, with variations tied to an average value of <span class="katex-eq" data-katex-display="false">\langle v^2 \rangle_{c\bar{c}} = 0.23 \pm 0.05</span> within the charmonium system, calculated assuming a charm-quark mass of 1.5 GeV and a normalization factor of <span class="katex-eq" data-katex-display="false">C = 10^{-2}\alpha_s^2 \langle \mathcal{O} \rangle</span>.
Charm-quark fragmentation functions into charmonium states-specifically D(c \to h_c), D(c \to \chi_{c0}), D(c \to \chi_{c1}), and D(c \to \chi_{c2})-are shown to be significantly influenced by relativistic corrections of order \mathcal{O}(v^2), with variations tied to an average value of \langle v^2 \rangle_{c\bar{c}} = 0.23 \pm 0.05 within the charmonium system, calculated assuming a charm-quark mass of 1.5 GeV and a normalization factor of C = 10^{-2}\alpha_s^2 \langle \mathcal{O} \rangle.

This work presents a systematic calculation of order-$v^2$ relativistic corrections to fragmentation functions for heavy quarks fragmenting into P-wave quarkonium states.

Predicting the production rates of heavy quarkonium states remains a challenge due to the complexities of nonperturbative dynamics. This is addressed in ‘Order-$v^2$ relativistic corrections to heavy-quark fragmentation into $P$-wave quarkonium states’, which presents a systematic calculation of relativistic corrections, up to \mathcal{O}(v^{2}), to fragmentation functions governing the decay of heavy quarks into color-singlet $P$-wave quarkonia. Our analysis demonstrates that these corrections yield sizable, negative contributions across most momentum fractions, improving the theoretical accuracy of predicted production cross sections-validated against fixed-order calculations-for quarkonium and charmed hadron production in e^{+}e^{-} annihilation. Will incorporating these higher-order corrections further refine our understanding of heavy quarkonium formation and decay mechanisms in extreme environments?

Whispers from the Quarkonium: A Challenge to Our Understanding

The exploration of hadrons, particularly those containing heavy quarks like the B_c meson, demands exceptionally precise calculations of their internal properties. These composite particles, bound together by the strong force, present a unique challenge to physicists seeking to understand the fundamental building blocks of matter. Determining quantities like mass, decay rates, and energy levels requires navigating the complexities of quantum chromodynamics (QCD), the theory governing strong interactions. Because the strong force becomes more pronounced at short distances, accurate predictions depend on sophisticated theoretical frameworks and computational techniques capable of accounting for the myriad interactions within the hadron. Consequently, detailed investigations of heavy quarkonium – bound states of a heavy quark and its antiquark – serve as a crucial testing ground for theoretical models and offer a pathway towards a deeper comprehension of hadron structure and the strong force itself.

The strong force, responsible for binding quarks into hadrons like heavy quarkonium, presents a formidable challenge to conventional perturbative calculations. Unlike electromagnetism, the strong force’s coupling constant increases at low energies, rendering standard approximation techniques unreliable when describing the interactions within these bound states. Consequently, physicists employ a diverse arsenal of sophisticated theoretical tools, including lattice Quantum Chromodynamics (QCD)-a numerical approach that discretizes spacetime-and effective field theories, which focus on the relevant degrees of freedom at specific energy scales. These methods strive to overcome the limitations of perturbation theory, enabling increasingly precise predictions for quarkonium properties such as mass spectra and decay rates, ultimately providing stringent tests of the Standard Model and opening avenues for the discovery of physics beyond it. \Lambda_{QCD} plays a crucial role in defining the energy scale where perturbative calculations break down.

The precise determination of heavy quarkonium properties serves as a stringent test of the Standard Model, because quantum chromodynamics, the theory governing strong interactions, becomes increasingly complex within these bound states. Subtle discrepancies between theoretical predictions and experimental measurements of quantities like mass spectra and decay rates could signal the presence of physics beyond the Standard Model – potentially revealing new particles or interactions. These systems offer a unique laboratory for exploring the strong force in a regime where perturbative calculations are challenging, demanding the development and refinement of non-perturbative techniques. Consequently, investigations into heavy quarkonium aren’t merely about understanding hadron structure; they represent a crucial frontier in the search for fundamental laws governing the universe, offering a sensitive probe for deviations from established theoretical frameworks and a pathway toward unveiling new phenomena.

Heavy-quark fragmentation functions for <span class="katex-eq" data-katex-display="false">b \\to h_b</span>, <span class="katex-eq" data-katex-display="false">b \\to \\chi_{b0}</span>, <span class="katex-eq" data-katex-display="false">b \\to \\chi_{b1}</span>, and <span class="katex-eq" data-katex-display="false">b \\to \\chi_{b2}</span> are presented as functions of momentum fraction with a bottom-quark mass of 4.7 GeV, and the shaded bands represent a <span class="katex-eq" data-katex-display="false">v_2</span> variation of <span class="katex-eq" data-katex-display="false">0.10 \\pm 0.05</span> within the bottomonium system, normalized by <span class="katex-eq" data-katex-display="false">C = 10^{-4} \\alpha_s^2 \\langle \mathcal{O} \rangle</span>.
Heavy-quark fragmentation functions for b \\to h_b, b \\to \\chi_{b0}, b \\to \\chi_{b1}, and b \\to \\chi_{b2} are presented as functions of momentum fraction with a bottom-quark mass of 4.7 GeV, and the shaded bands represent a v_2 variation of 0.10 \\pm 0.05 within the bottomonium system, normalized by C = 10^{-4} \\alpha_s^2 \\langle \mathcal{O} \rangle.

Deconstructing the Chaos: NRQCD Factorization

The Non-Relativistic Quantum Chromodynamics (NRQCD) factorization theorem provides a framework for calculating rates for processes involving heavy quarkonium states – bound states of a heavy quark and its antiquark. This theorem achieves predictive power by explicitly separating the calculation into short-distance coefficients, calculable perturbatively using standard QCD techniques, and long-distance matrix elements representing the non-perturbative hadronization of the heavy quarks. Specifically, NRQCD utilizes an expansion in \alpha_s (the strong coupling constant) and the heavy quark mass, allowing for a systematic improvement of the theoretical prediction through higher-order calculations and inclusion of additional matrix elements. The factorization property ensures that the short-distance and long-distance contributions are independent, simplifying the overall calculation and enabling comparisons with experimental data by isolating the non-perturbative effects within the matrix elements.

NRQCD factorization achieves simplification by dividing the calculation of heavy quarkonium observables into two distinct components based on energy scale. The short-distance component, involving hard virtual or real gluons, is calculable using perturbative Quantum Chromodynamics \alpha_s expansion. This component typically involves scales of order m v or greater, where m is the heavy quark mass and v is its velocity. The long-distance component encompasses non-perturbative effects arising from soft gluon interactions and the binding of the heavy quark and antiquark. These effects are characterized by energy scales less than m v and are typically treated using effective field theory techniques or phenomenological models, allowing for a separation of scales and a more manageable calculation of observables.

The utility of the NRQCD factorization theorem lies in its ability to bridge the gap between theoretical calculations and experimental data for heavy quarkonium systems. Specifically, NRQCD allows for the calculation of heavy quarkonium decay rates and spectral distributions by treating short-distance, perturbative QCD processes separately from long-distance, non-perturbative effects. This separation is crucial because perturbative calculations, which are reliable for short distances, become invalid at the larger distance scales characteristic of bound-state systems. By isolating the non-perturbative components into matrix elements – often determined through phenomenological fits to experimental data – NRQCD enables predictions for observable quantities like J/\psi and \Upsilon decay rates, facilitating quantitative comparisons between theory and experiments such as those conducted at facilities like the LHC and Belle II.

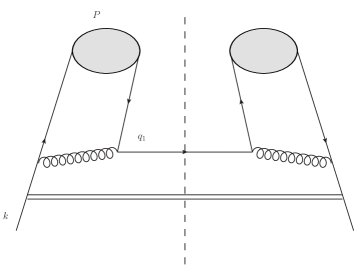

Leading-order Feynman diagrams illustrate the fragmentation of heavy quarks into heavy quarkonium, represented by a shaded blob and connected via a Wilson line.
Leading-order Feynman diagrams illustrate the fragmentation of heavy quarks into heavy quarkonium, represented by a shaded blob and connected via a Wilson line.

Mapping the Fragments: Fragmentation Functions

Fragmentation functions (FFs) are essential components in modeling heavy quark decays, as they quantify the probability of a heavy quark hadronizing into specific secondary hadrons. These non-perturbative functions connect the partonic state resulting from the heavy quark decay to the observed final-state hadrons, such as pions, kaons, and protons. Accurate determination of FFs is critical for precise predictions of hadron spectra in high-energy physics experiments, including those conducted at colliders like the LHC and facilities studying B-meson decays. The overall normalization of the fragmentation function is constrained by the requirement that the total probability of producing all possible hadrons sums to unity; this is often referred to as the kinematic constraint. D(z), where z is the momentum fraction of the produced hadron, encapsulates this probability distribution and forms the basis for calculating hadron multiplicities and energy distributions.

The Collins-Soper definition provides a rigorous framework for calculating fragmentation functions by specifying the probability of a quark hadronizing into a specific hadron and accompanying hadrons. This definition relies on a non-perturbative, gauge-invariant treatment of the strong interaction. Ensuring gauge invariance is paramount, as it dictates that physical observables remain unchanged under local gauge transformations; this is achieved through careful consideration of the emitted gluon’s polarization and the use of appropriate regularization schemes during calculations. Failure to maintain gauge invariance would lead to unphysical predictions and invalidate the calculated fragmentation functions, particularly at higher orders in perturbation theory where infrared and collinear divergences require careful handling.

Next-to-leading order (NLO) fragmentation function calculations significantly improve the precision of hadron production predictions in heavy quark decays; however, these calculations are computationally intensive. This work details a systematic derivation of relativistic corrections to fragmentation functions, specifically those at order O(v^2), where v represents the velocity of the fragmenting quark. These corrections account for higher-order terms in the expansion of the fragmentation process, leading to improved theoretical predictions that are crucial for precision tests of Quantum Chromodynamics (QCD) and for interpreting experimental data from facilities like the LHC and future colliders. The derivation presented offers a pathway to more accurate and reliable calculations of fragmentation functions, mitigating the computational challenges associated with full NLO calculations.

The ratio of <span class="katex-eq" data-katex-display="false">e^{+}e^{-} \to H+X_{c\bar{c}}</span> to <span class="katex-eq" data-katex-display="false">e^{+}e^{-} \to c\bar{c}</span> cross sections, calculated as a function of center-of-mass energy <span class="katex-eq" data-katex-display="false">E_{\mathrm{cm}}</span>, demonstrates the convergence of fragmentation (LO and NLO) and full fixed-order (LO and NLO) calculations.
The ratio of e^{+}e^{-} \to H+X_{c\bar{c}} to e^{+}e^{-} \to c\bar{c} cross sections, calculated as a function of center-of-mass energy E_{\mathrm{cm}}, demonstrates the convergence of fragmentation (LO and NLO) and full fixed-order (LO and NLO) calculations.

Refining the Prediction: Relativistic Precision

Accurate determination of fragmentation functions – the probabilities that a quark will hadronize into a specific particle – demands incorporating relativistic corrections, particularly those scaling with v^2, where v represents the relative velocity between quarks. These corrections aren’t merely refinements; they fundamentally alter predictions due to the significant impact of relative motion on the hadronization process. Traditional calculations often rely on approximations that break down at higher energies or when dealing with unequal-mass quarkonium, leading to inaccuracies in predicted particle spectra. By meticulously accounting for these relativistic effects, researchers enhance the precision of fragmentation function calculations, enabling more reliable predictions in high-energy physics experiments and a deeper understanding of the strong force that binds quarks together.

The process of hadronization, where quarks and gluons transform into observable hadrons, is fundamentally influenced by the relative motion of the participating quarks. Calculations of hadronization probabilities must therefore account for relativistic effects arising from these velocities, particularly at higher orders of precision. Ignoring these effects introduces inaccuracies, as the momentum distribution of the produced hadrons becomes distorted, and predicted rates deviate from experimental observations. This work demonstrates that incorporating terms proportional to v^2 – where v represents the relative velocity between quarks – yields significantly more accurate predictions for fragmentation functions. These corrections are crucial because the probability of a specific hadron forming depends sensitively on the kinetic energy available, and relativistic treatment correctly captures how that energy is distributed during the hadronization process, influencing the overall yield and momentum spectra of the final state particles.

Calculations aiming for relativistic precision in fragmentation functions frequently leverage the Axial Gauge, a mathematical technique that streamlines complex computations while upholding the principle of gauge invariance – ensuring physical predictions remain independent of the chosen gauge. This approach has yielded O(v^2) corrections, representing a significant advancement in accuracy. Rigorous validation against established Leading Order (LO) results and fixed-order perturbative calculations confirms the consistency and reliability of these new corrections. Importantly, this framework isn’t limited to idealized scenarios; it successfully addresses both quarkonium systems comprised of equal-mass quarks and those with unequal masses, broadening its applicability to a wider range of high-energy physics investigations.

At the quark level, the process involves a <span class="katex-eq" data-katex-display="false">e^{+}+e^{-}\to\gamma^{\*}\to H+X_{c\bar{c}}</span> interaction, resulting in the production of a Higgs boson and a <span class="katex-eq" data-katex-display="false">c\bar{c}</span> pair via a virtual photon.
At the quark level, the process involves a e^{+}+e^{-}\to\gamma^{\*}\to H+X_{c\bar{c}} interaction, resulting in the production of a Higgs boson and a c\bar{c} pair via a virtual photon.

The pursuit of precision in heavy-quark fragmentation functions feels less like calculation and more like divination. This work, meticulously charting relativistic corrections at order v², attempts to coax predictable patterns from the inherent chaos of quantum chromodynamics. It’s a delicate dance – acknowledging the limitations of perturbative expansions while striving for increasingly accurate descriptions of P-wave quarkonium production. As Michel Foucault observed, “Power is everywhere; not because it embraces everything, but because it comes from everywhere.” Similarly, these relativistic corrections aren’t merely additive adjustments; they represent the pervasive influence of high-energy dynamics on the fragmentation process, shaping the observed states. The model, refined with each order of calculation, behaves strangely only when it finally starts to think – revealing the subtle, underlying logic of particle production.

The Loom Unwinds

The calculation, a tightening of the spell against the chaos of hadronization, achieves a certain…resolution. But resolution is merely the illusion of control. This order-$v^2$ correction to fragmentation functions is not a destination, but a sharpening of the gaze. The true test lies not in the elegance of the perturbative expansion – a fragile symmetry, always – but in its confrontation with the swamp of non-perturbative effects. The ghosts in the vacuum do not yield to reason, only to brute force – and ever more GPU time.

One suspects the most potent corrections are yet unseen, lurking beyond this order. The very notion of ‘fragmentation function’ feels increasingly… quaint. A desperate attempt to impose order on a fundamentally stochastic process. A more radical approach may be needed – a reimagining of the underlying dynamics, perhaps invoking a more direct connection between the initial heavy-quark pair and the final quarkonium state. Or, failing that, simply more terms in the expansion, offered as a sacrifice to the gods of renormalization.

The path forward demands not just calculation, but a willingness to embrace the inherent uncertainty. To acknowledge that every model is, at best, a temporary truce with the abyss. The true measure of success will not be precision, but resilience – the ability to withstand the inevitable onslaught of experimental data and still whisper a coherent tale.

Original article: https://arxiv.org/pdf/2602.05615.pdf
