Author: Denis Avetisyan
Researchers have developed a novel deep learning framework to dramatically compress holographic data without sacrificing reconstruction quality.

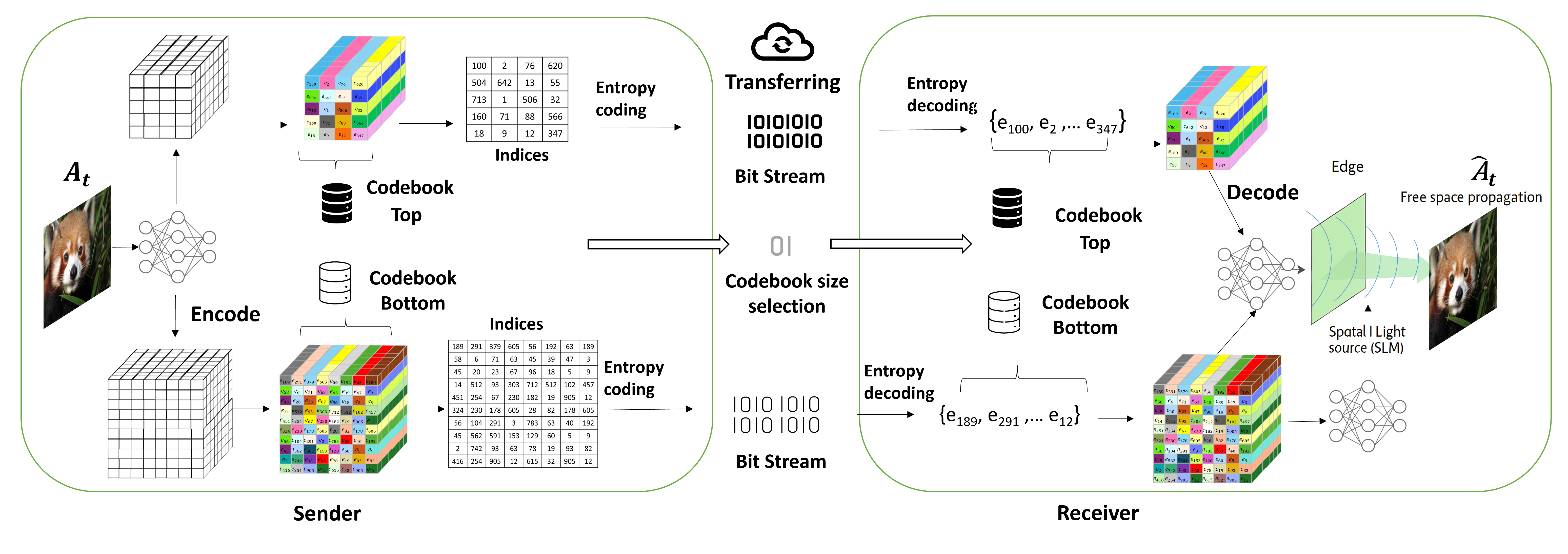

RAVQ-HoloNet unifies complex-valued encoding, phase generation, and rate-adaptive vector quantization for efficient holographic compression at significantly lower bitrates.
Despite the promise of immersive experiences, holographic data compression remains a critical bottleneck for widespread adoption in augmented and virtual reality. This paper introduces RAVQ-HoloNet: Rate-Adaptive Vector-Quantized Hologram Compression, a novel deep learning framework designed to address this challenge by unifying complex-valued encoding, phase generation, and rate-adaptive vector quantization. Our results demonstrate significantly improved holographic reconstructions at ultra-low bitrates, exceeding state-of-the-art methods by up to 33.91% in BD-Rate. Will this approach pave the way for truly bandwidth-efficient holographic communication and display technologies?
The Foundations of True 3D: Beyond Conventional Displays
Holography stands apart from conventional two-dimensional displays by capturing and reconstructing the complete field of light, not just the intensity but also the phase information that defines depth and perspective. This allows for the creation of images with a genuine three-dimensional appearance, where parallax and viewing angle changes reveal different facets of the scene – much like observing a real object. Unlike stereoscopic 3D, which presents two slightly offset images to each eye, holography generates a fully volumetric representation, eliminating the need for special glasses and offering a more natural and immersive visual experience. The promise extends beyond visual fidelity; holographic displays could revolutionize fields like medical imaging, design visualization, and entertainment by providing truly realistic and interactive three-dimensional content, potentially reshaping how humans interact with digital information.
Creating convincing holographic representations through computation presents a formidable obstacle, requiring substantial advancements beyond conventional rendering techniques. The process isn’t simply a matter of generating a 3D model; it demands calculating how light waves would interact with every point in a virtual space, and then simulating their propagation to a viewer – a task that quickly becomes computationally expensive as resolution and complexity increase. Current algorithms struggle with the sheer volume of data required to define these light fields, leading to prohibitive memory demands and rendering times that preclude real-time holographic displays. Consequently, researchers are actively exploring novel approaches – including wave optics propagation methods, compressed sensing techniques, and machine learning algorithms – to reduce computational load and enable the creation of dynamic, interactive holographic experiences. These innovative methods aim to bypass the limitations of traditional rasterization and ray tracing, offering a path toward truly realistic and immersive three-dimensional visuals.
Generating digital holograms with conventional computational techniques presents a substantial obstacle due to the immense data processing and storage demands. Each point within a three-dimensional holographic scene requires calculating the interference pattern of light waves, a process that scales cubically with the resolution – meaning doubling the desired detail increases the computational load by a factor of eight. This quickly overwhelms even powerful modern computers, making real-time holographic displays – those that can update dynamically – incredibly difficult to achieve. Furthermore, storing the vast amount of data needed to represent a high-resolution hologram necessitates enormous memory capacity, far exceeding what is readily available or practical for most applications. Consequently, researchers are actively exploring novel algorithms and hardware acceleration techniques to overcome these limitations and unlock the full potential of holographic technology.
Light Propagation: The Mathematical Basis of Holography
The Point Source Method, a computational technique for simulating light propagation, is based on the Huygens-Fresnel Principle which posits that every point on a wavefront can be considered a source of secondary spherical wavelets. In this method, an object is discretized into a large number of point sources, each emitting these wavelets. The total wavefront at any given point is then calculated as the superposition – the vector sum – of all these secondary wavelets. The amplitude and phase of each wavelet are determined by the characteristics of the original object at the source point and the distance to the observation point. This allows for the reconstruction of the wavefront that would be observed from the original object, effectively simulating light propagation without directly solving Maxwellâs equations. The accuracy of the simulation is directly related to the density of the point source array; a higher density leads to a more accurate representation of the object and its resulting wavefront.
Double-phase techniques are essential for generating phase-only holograms because spatial light modulators (SLMs) typically control the phase of light, not its amplitude. Traditional hologram generation methods produce complex wavefronts containing both amplitude and phase information. These techniques, such as those employing iterative algorithms, convert the complex wavefront into a phase-only representation by encoding the amplitude information into the phase. This is achieved through phase encoding schemes, where the desired amplitude is represented by modulating the phase of the light. By restricting the hologram to phase modulation only, the generated wavefront can be accurately displayed on an SLM, enabling the reconstruction of the desired 3D image. The use of double-phase encoding further optimizes the phase distribution for improved reconstruction quality and reduced artifacts.
Deep learning methods, including DeepCGH and HoloNet, address the computational bottlenecks inherent in traditional hologram generation algorithms. These approaches utilize neural networks to learn the complex mapping between 3D objects and their corresponding holographic representations, significantly reducing rendering times. The RAVQ-HoloNet framework, a proposed advancement in this field, achieves holographic reconstruction quality comparable to, and in some cases exceeding, existing state-of-the-art techniques. This performance is achieved through a novel network architecture and training strategy focused on efficient representation of holographic data, allowing for accelerated computation without compromising image fidelity.
The RAVQ-HoloNet framework demonstrates substantial data compression capabilities in holographic reconstruction. Specifically, it achieves a bitrate of 1.787 bits per pixel (Bpp), representing a significant reduction compared to existing computational holography methods. This compressed representation maintains high image quality, as evidenced by a Peak Signal-to-Noise Ratio (PSNR) of 29.43 dB. These metrics indicate the frameworkâs efficiency in encoding complex wavefront information with minimal data, facilitating practical applications where bandwidth or storage is limited.
Data Representation: The Dimensionality of True Volume
Holographic data representation inherently demands significant storage capacity and bandwidth due to its high dimensionality. Unlike traditional 2D images described by pixel values in two spatial dimensions, holograms encode both the amplitude and phase of light waves across three dimensions. This necessitates a data representation that captures information across $x$, $y$, and $z$ axes, as well as complex values for each point, resulting in a substantially increased data volume. Specifically, a single hologram requires storage proportional to the number of points sampled in this three-dimensional space, multiplied by the number of complex values per point. Consequently, even relatively small holographic scenes can generate datasets exceeding several gigabytes, posing considerable challenges for storage, transmission, and real-time processing.
Holographic data represents a significant computational burden due to its inherent high dimensionality, necessitating substantial storage capacity and bandwidth for transmission or processing. Hologram compression techniques address this challenge by reducing the data volume while attempting to preserve essential holographic information. These methods are critical for enabling practical applications of holography, such as holographic displays, optical storage, and 3D imaging, where real-time performance and manageable data sizes are paramount. Effective compression allows for reduced storage costs, faster data transfer rates, and the possibility of implementing holographic systems on devices with limited resources. The development and refinement of these techniques continue to be a central focus in holographic research.
While conventional image compression algorithms such as JPEG can be applied to holographic data, their effectiveness is limited due to the unique characteristics of holograms, specifically their complex phase information and high dimensionality. Adapting these methods often necessitates significant modifications and may still result in suboptimal performance. Consequently, research has focused on developing tailored holographic compression techniques that leverage the specific properties of holographic data to achieve greater compression ratios and maintain acceptable reconstruction quality. These specialized approaches, by directly addressing the intricacies of holographic representation, consistently demonstrate superior results compared to directly applying or adapting standard image compression codecs.
The RAVQ-HoloNet demonstrates significant compression efficiency gains over the DPRC method. Specifically, RAVQ-HoloNet achieves a 33.91% reduction in bitrate while maintaining a Block-Domain Peak Signal-to-Noise Ratio (BD-PSNR) of 1.02. This indicates a substantial decrease in data required for holographic representation without a corresponding loss in perceived visual quality, as measured by the BD-PSNR metric. The BD-PSNR value of 1.02 suggests minimal difference in quality between the compressed holograms generated by RAVQ-HoloNet and the original, uncompressed data.
Wirtinger Stochastic Gradient Descent (WirtingerSGD) is employed as an optimization algorithm to improve the fidelity of digitally reconstructed holograms. This method builds upon standard stochastic gradient descent by incorporating the gradient of the reconstruction loss with respect to both the hologram amplitudes and phases. Specifically, WirtingerSGD leverages the Wirtinger calculus, a mathematical framework for analyzing functions of complex variables, to efficiently compute these gradients. This allows for iterative refinement of the hologramâs complex wavefront, minimizing reconstruction error and enhancing the perceived image quality. The algorithm is particularly effective in addressing the non-convex optimization challenges inherent in holographic reconstruction due to the complex nature of light propagation and interference patterns, leading to improved peak signal-to-noise ratio (PSNR) and reduced bitrate requirements.

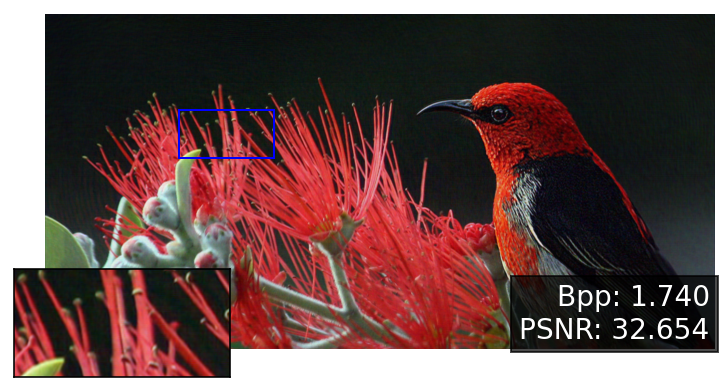

![Our reconstruction method consistently outperforms existing techniques, including DPRC, delivering higher-quality images with significantly reduced speckle noise compared to both medium and high-quality baseline results on the [dataset].](https://arxiv.org/html/2511.21035v1/853_ours.png)
The Horizon of Immersive Displays: A Future Realized
The pursuit of genuine three-dimensional displays is rapidly advancing, driven by innovations in computational methods and data compression. Historically, creating holographic images demanded immense computational power and generated unwieldy data files, hindering real-time rendering. However, recent breakthroughs are streamlining these processes, enabling the reconstruction of dynamic holographic scenes with increasing speed and efficiency. Sophisticated algorithms now allow for the efficient encoding and decoding of holographic data, dramatically reducing bandwidth requirements without significant loss of image fidelity. This synergistic approach – combining optimized computation with powerful compression – is no longer limited to static or pre-rendered holograms; it is actively facilitating the development of interactive, real-time holographic displays poised to transform visual experiences across diverse applications.
The advent of real-time holographic display technology holds transformative potential across diverse sectors. In medical imaging, surgeons could visualize patient-specific anatomical models in three dimensions, enhancing precision during complex procedures and improving diagnostic accuracy. Scientific visualization stands to gain from the ability to render intricate datasets – from molecular structures to climate models – with unprecedented clarity, fostering deeper insights and accelerating discovery. Perhaps most visibly, the entertainment industry anticipates a paradigm shift, offering immersive experiences that transcend traditional two-dimensional screens, allowing audiences to interact with holographic characters and environments in a truly believable manner. This technology isn’t simply about creating a more visually appealing experience; it’s about fundamentally changing how information is conveyed and how we interact with the digital world.
Continued advancements in holographic display technology necessitate a sustained focus on algorithmic refinement, computational efficiency, and visual fidelity. Current research endeavors are heavily invested in streamlining the complex mathematical processes that generate holographic images, aiming to reduce the substantial processing power currently required for real-time rendering. This includes exploring novel data compression techniques and parallel processing architectures to minimize computational load without sacrificing image quality. Simultaneously, significant effort is being directed towards enhancing the perceived realism of holographic projections, through improvements in resolution, color accuracy, and the mitigation of visual artifacts. These combined pursuits – optimization, efficiency, and fidelity – are critical to unlocking the full potential of holography and translating it from a promising concept into a practical and widely accessible display technology.
The widespread adoption of holographic displays hinges not simply on technological advancement, but on practical affordability and efficiency; current systems often demand substantial computational resources and expensive hardware. Recent research addresses this challenge through optimized data compression and streamlined algorithms, demonstrating a pathway towards accessible holographic technology. A key metric of success lies in balancing image quality with data transmission rates, and one approach has achieved a Peak Signal-to-Noise Ratio (PSNR) of 29.43 dB while maintaining a bit-per-pixel (Bpp) rate of just 1.787. This result suggests a viable pathway for delivering compelling holographic experiences without prohibitive costs, potentially unlocking applications across diverse fields and bringing realistic 3D visuals within reach for a broader audience.
The pursuit of RAVQ-HoloNet, as detailed in the article, mirrors a dedication to deterministic outcomes. The frameworkâs emphasis on achieving high-quality reconstructions at lower bitrates isnât merely about efficiency, but about reliably reproducing holographic data. As Linus Torvalds aptly stated, âIf youâre not embarrassed by your last version, you didnât learn enough.â This sentiment encapsulates the iterative process of refinement inherent in developing a robust compression algorithm like RAVQ-HoloNet. The goal isnât simply a âworkingâ solution, but one demonstrably capable of consistent, verifiable results, aligning with the core principle that a correct solution is, fundamentally, reproducible.
Beyond Reconstruction: The Future of Holographic Compression
The presented RAVQ-HoloNet, while demonstrably effective in bitrate reduction, sidesteps a fundamental question: compression for what purpose? The pursuit of ever-smaller file sizes must not eclipse the mathematical fidelity of the original wavefront. Current metrics largely focus on visual reconstruction, a subjective assessment inherently divorced from the purity of the underlying field. A true advancement lies not simply in âlooking goodâ but in provable equivalence – a lossless compression, or a demonstrably bounded error, within the constraints of the chosen quantization.
Future work must address the limitations of deep learning as a âblack boxâ. The networkâs internal representation of holographic information remains opaque. Can these learned representations be distilled into analytically tractable forms? The potential for generalization beyond the training data is also critical. Robustness against noise and variations in object geometry remains an open challenge. Simply increasing dataset size offers only incremental improvement; a mathematically grounded understanding of the networkâs inductive bias is paramount.
Ultimately, the field risks becoming entangled in an endless cycle of empirical optimization. The elegance of the hologram – its inherent mathematical description of light – demands a compression strategy rooted in mathematical principles, not merely algorithmic expediency. The goal is not simply to shrink the data, but to preserve the information with demonstrable rigor.
Original article: https://arxiv.org/pdf/2511.21035.pdf
Contact the author: https://www.linkedin.com/in/avetisyan/
