You Won’t Believe How ASUS Dual GeForce RTX 5060 Crushes Next-Gen Games at Just $299!

by

NVIDIA persists in releasing its 50 Series GPUs, and some of its partners are introducing their own unique designs for these graphics cards. For instance, as NVIDIA unveils the RTX 5060, ASUS is simultaneously presenting a new addition to their Dual series – the ASUS Dual GeForce RTX 5060. Although the ASUS Dual is essentially a custom design for NVIDIA’s newest GPU, it’s essential to note that the main component remains the RTX 5060.

The new NVIDIA GeForce RTX 5060, part of the RTX 50 Series, is designed to outperform its entry-level status. A key factor in this is its advanced DLSS 4 technology, which includes features like Multi Frame Generation, Ray Reconstruction, and enhanced Super Resolution for AI-enhanced rendering. For those still using older entry-level cards such as the 3060 or 4060, the competitive $299 price could be a reason to upgrade. However, its true performance under stress will ultimately decide its worth, hence Game Rant subjected the ASUS Dual GeForce RTX 5060 to intense gaming sessions with games like “Star Wars Outlaws” and “Alan Wake 2”.

ASUS Dual GeForce RTX 5060 Design

Initially, the ASUS Dual GeForce RTX 5060 may not boast RGB or edgy styling, but its minimalistic design appears thoughtful upon closer inspection. There’s an understated elegance to the ASUS Dual GeForce RTX 5060, as it seems content with being a powerful GPU rather than striving for more. The card’s exterior features a sleek black finish that seems to resist fingerprints and dust, complemented by subtle matte silver accents similar to earlier Founders Editions.

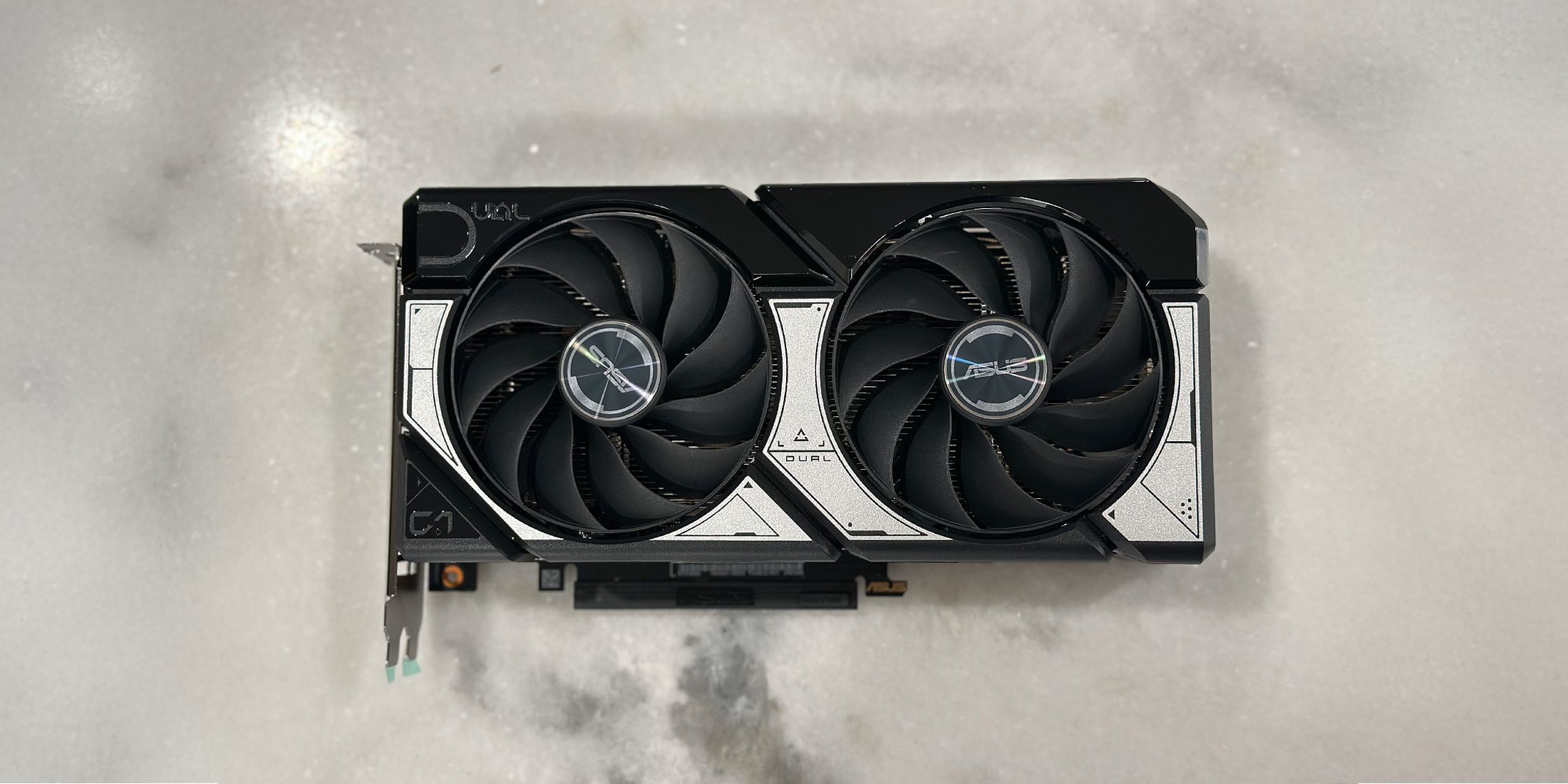

From a bird’s eye view, the card sports a twin-fan design encased within geometric borders for a sleek, balanced appearance. The casing exudes durability rather than ostentation, resembling a robust, futuristic container that could withstand the passage of time. It doesn’t shy away from its unique character either, as etched arrows and the word “Dual” are strategically placed on the casing to accentuate its performance-focused persona. The backplate shares this philosophy, favoring a metallic gray with crisp white circuit-inspired graphics over the black and silver found on other sides. And as expected from an NVIDIA card, it bears the prominent “GEFORCE RTX” label near the top edge of the backplate.

Initially, it may seem that the ASUS Dual GeForce RTX 5060 lacks RGB lighting or sharp edges; however, its minimalist design appears intentional, giving off an impression of careful planning.

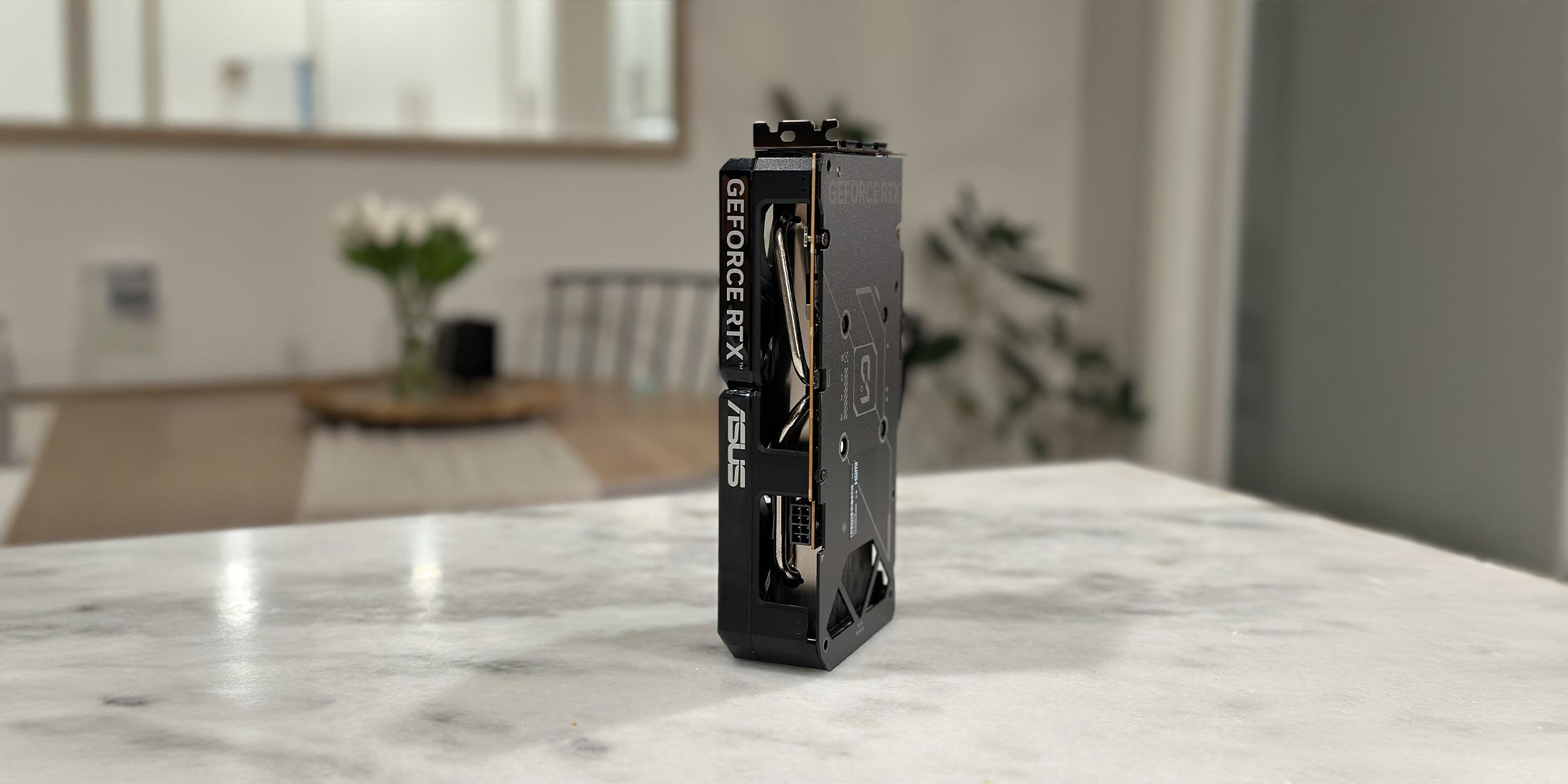

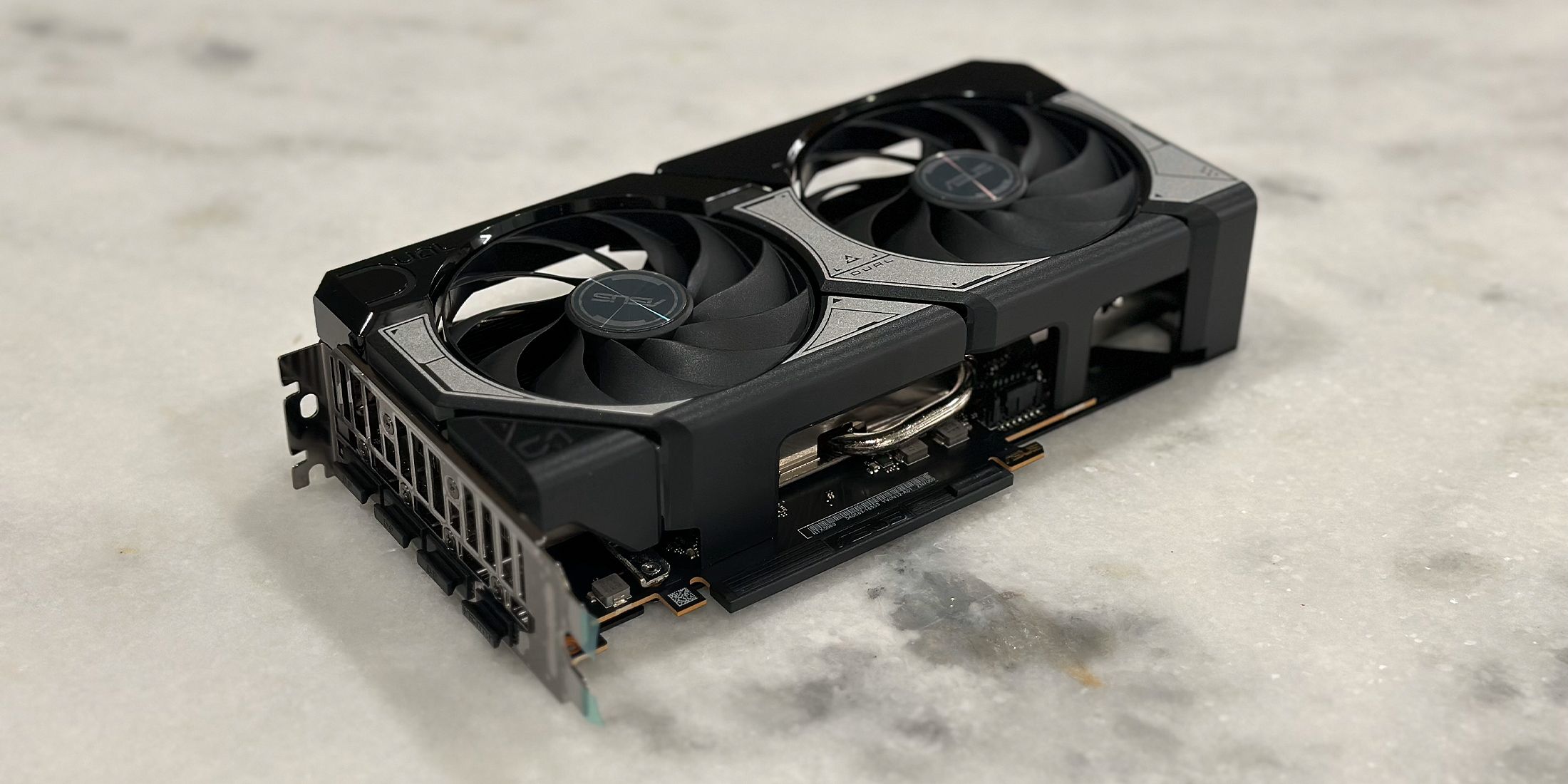

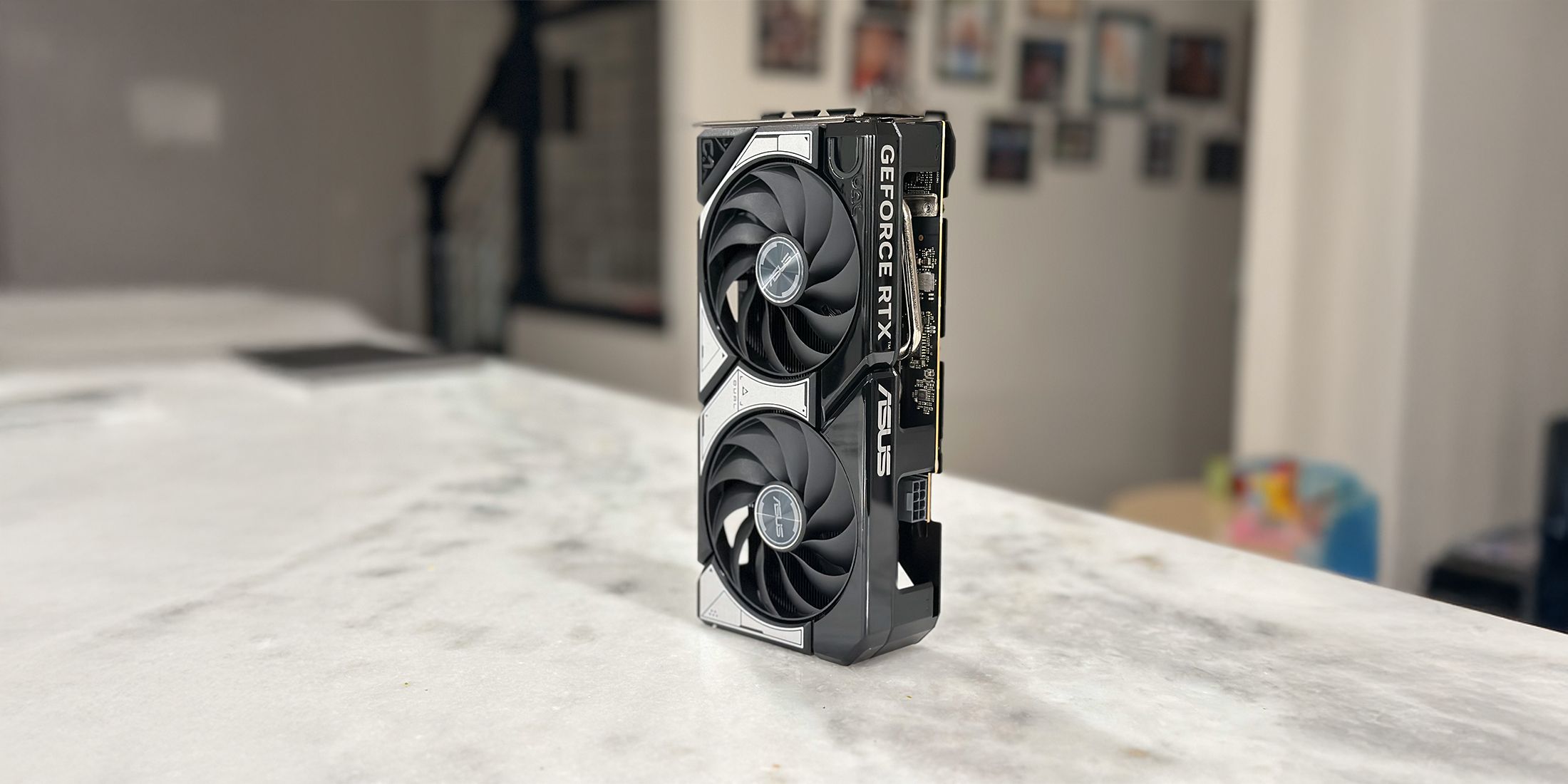

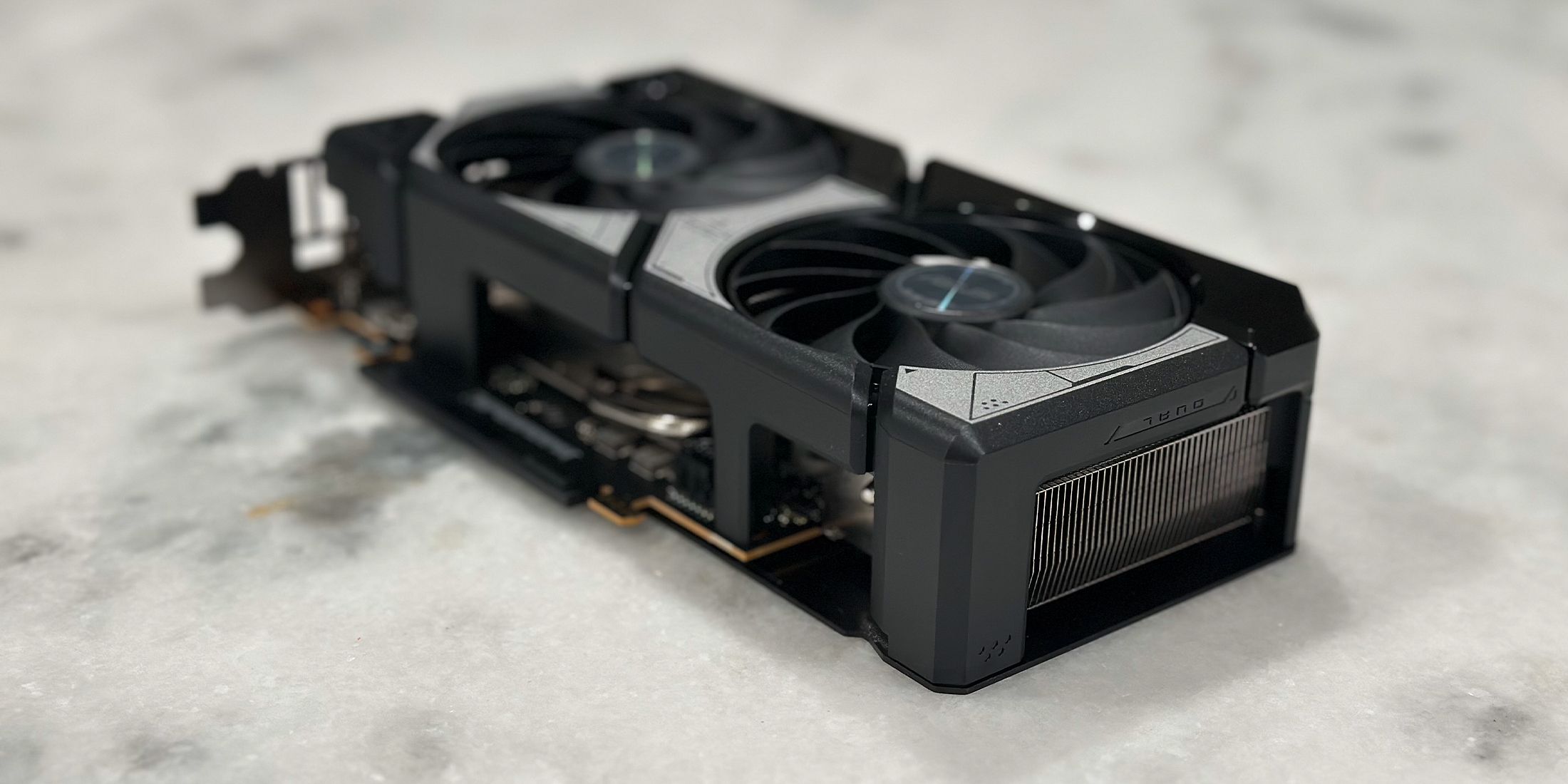

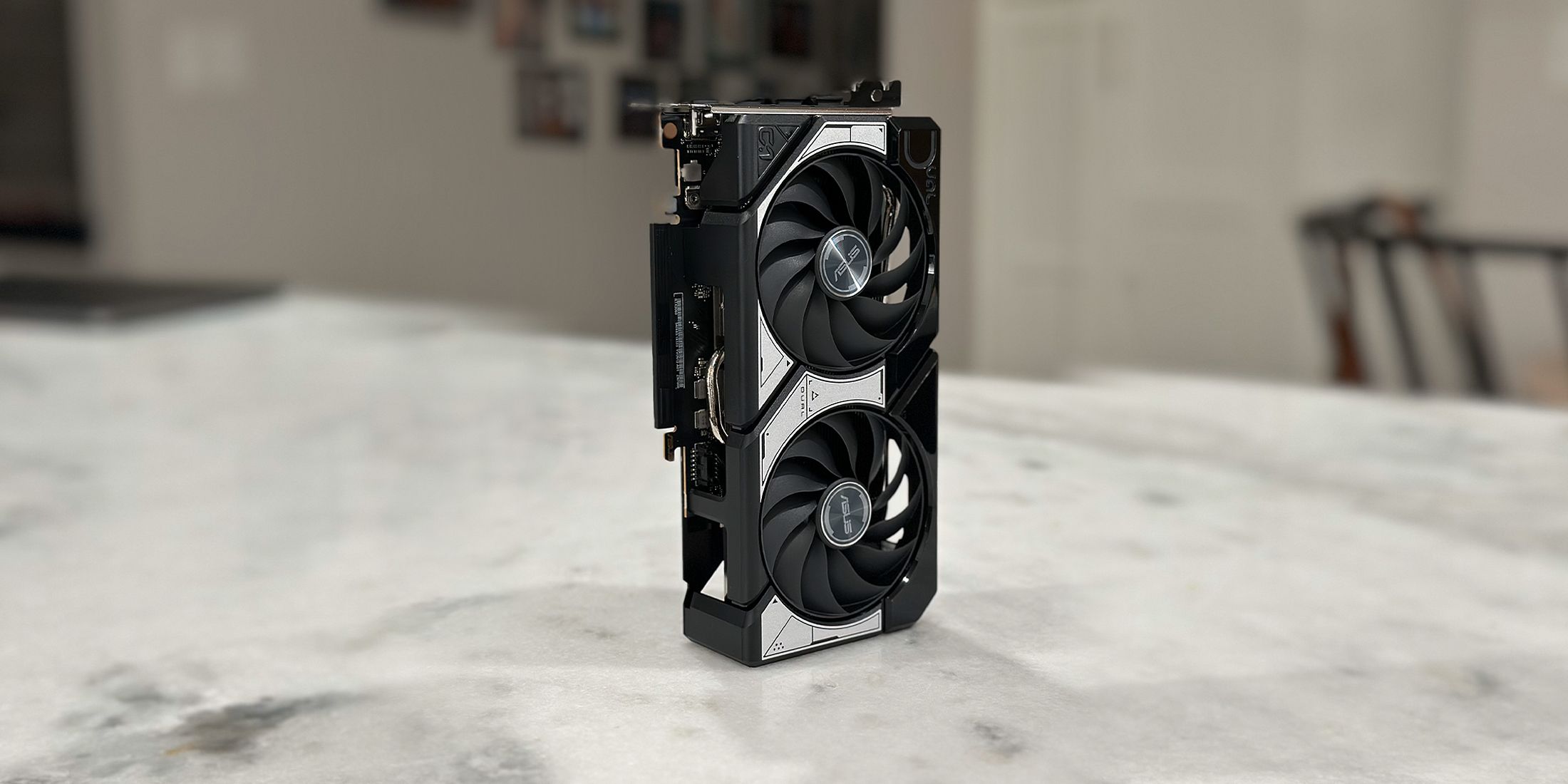

On its sides, the ASUS Dual GeForce RTX 5060 card showcases its piping and shape, making these features more prominent. Its design exudes efficiency, suggesting it’s designed to minimize space while maintaining cooling capabilities under pressure and durability for years. The heatsink fins and power connector align with the ASUS Dual’s clear design philosophy, striking a balance between aesthetic appeal and functionality. In essence, the ASUS Dual GeForce RTX 5060 isn’t flashy, but its simplicity is what sets it apart. It seems tailor-made for those seeking a clean, focused design that fits seamlessly into a high-performance build without stealing the spotlight.

ASUS Dual GeForce RTX 5060 Specs, Performance, and Testing

NVIDIA CUDA Cores 3840
Shader Cores (AI) Blackwell 19 TFLOPS
Tensor Cores 5th Generation 614 AI TOPS
Ray Tracing Cores 4th Generation 30 TFLOPS
Boost Clock (GHz) 2.49
Base Clock (GHz) 2.28
Standard Memory Config 8GB GDDR7
Memory Interface Width 128-bit
Display Support Up to 4K at 480 Hz or 8K at 165 Hz with DSC

Ultimately, whether the NVIDIA RTX 5060 is a good upgrade for you hinges on your current setup and how it compares. As an entry-level GPU, its most relevant comparisons are with its immediate predecessors, such as the RTX 3060 and RTX 4060. In controlled tests, the RTX 5060 has demonstrated a performance boost of up to 25% when using DLSS 4 compared to the RTX 4060, but these figures can fluctuate based on your system’s overall configuration.

Given that the RTX 5060 is advertised as a GPU suitable for 1080p gaming, it’s reasonable to test its performance with games running at 1080p resolution. However, we challenged the RTX 5060 by pushing it with some of PC gaming’s most challenging titles such as “Alan Wake 2” and “God of War Ragnarok.” During our testing, we recorded average FPS across all Multi Frame Generation levels, average PC Latency (PCL), and the 1% lows for each game. We also cranked up the graphics settings to their maximum using provided presets, turned on Ray Tracing for every title, and set DLSS Super Resolution to “Quality.

1% lows refer to the typical value of the bottom 1% of frames within a specified timeframe, offering an indication of how seamless the gameplay experience is when it experiences temporary drops.

Alan Wake 2 Testing

Max Settings, Ray Tracing On, DLSS SR Quality, 1080p Resolution

  • No Multi Frame Generation: 38 FPS, 80 PCL
  • 2x Multi Frame Generation: 75 FPS, 68 PCL
  • 3x Multi Frame Generation: 112 FPS, 58 PCL
  • 4x Multi Frame Generation: 150 FPS, 50 PCL

Among the games we evaluated, “Alan Wake 2” stood out as the most power-hungry for an RTX 5060, particularly when Ray Tracing was activated. Without Multi Frame Generation (MFG), it became almost unplayable, irrespective of the settings applied. However, performance drastically enhanced once MFG was enabled, even at a modest 2x setting. With MFG set to its maximum of 4x, we often achieved over 150 frames per second (FPS) and only 50 pixels per clock (PCL), with 1% lows around 100 FPS.

Star Wars Outlaws Testing

Max Settings, Ray Tracing On, DLSS SR Quality, 1080p Resolution

  • No Multi Frame Generation: 60 FPS, 65 PCL
  • 2x Multi Frame Generation: 105 FPS, 55 PCL
  • 3x Multi Frame Generation: 130 FPS, 48 PCL
  • 4x Multi Frame Generation: 175 FPS, 42 PCL

In simpler terms, Star Wars Outlaws didn’t put as much strain on an RTX 5060 graphics card in 1080p resolution compared to Alan Wake 2. However, it still didn’t provide much rest for the GPU. Without Multi Frame Generation enabled, we generally got about 60 frames per second (FPS), but this number dropped significantly and often during intense firefights or when moving through crowded, populated cities in Star Wars Outlaws. On the other hand, with Multi Frame Generation set to its maximum at 4x, Star Wars Outlaws easily reached nearly 175 FPS most of the time, with 1% lows at approximately 115 FPS.

Indiana Jones and the Great Circle Testing

Max Settings, Ray Tracing On, DLSS SR Quality, 1080p Resolution

  • No Multi Frame Generation: 63 FPS, 60 PCL
  • 2x Multi Frame Generation: 110 FPS, 50 PCL
  • 3x Multi Frame Generation: 145 FPS, 44 PCL
  • 4x Multi Frame Generation: 190 FPS, 38 PCL

Among the four films we examined, “Indiana Jones and the Great Circle” showed the top performance, barely surpassing the 60 frames per second (FPS) mark without utilizing Multi Frame Generation. With a setting of 4x, however, “Indiana Jones and the Great Circle” managed approximately 190 FPS and about 38 pixels per clock (PCL), occasionally climbing towards 200 FPS. Occasionally, these figures would drop significantly, but this happened infrequently, resulting in an average of 135 FPS for the film’s lowest 1% with Multi Frame Generation set to 4x.

God of War Ragnarok Testing

Max Settings, Ray Tracing On, DLSS SR Quality, 1080p Resolution

  • No Multi Frame Generation: 55 FPS, 63 PCL
  • 2x Multi Frame Generation: 95 FPS, 52 PCL
  • 3x Multi Frame Generation: 135 FPS, 45 PCL
  • 4x Multi Frame Generation: 165 FPS, 40 PCL

In addition to Alan Wake 2, God of War Ragnarok was one of the most demanding games we evaluated. However, the RTX 5060 demonstrated its power when Multi Frame Generation was activated. Without this feature, God of War Ragnarok had some choppiness, but it significantly improved once turned on. With Multi Frame Generation set to 4x, God of War Ragnarok consistently delivered a good frame rate of approximately 165 FPS, with 1% lows at around 110 FPS. To put it simply, regardless of the action on the screen, God of War Ragnarok ran smoothly at 1080p when powered by the RTX 5060.

As I delved into the captivating world of this game on a powerhouse system boasting an AMD Ryzen 9 7950X CPU, 32GB DDR5 RAM, a blazingly fast Digital Storm M.2 Performance Series SSD, and a robust 1000W Digital Storm Performance Series PSU, I was utterly amazed at the seamless performance and immersive experience it offered.

DLSS 4 Is Clearly the RTX 5060’s Secret Ingredient

In comparison to previous generations, the new RTX 5060’s advanced DLSS 4 technology significantly outshines its predecessors. While earlier versions like DLSS 2, found in cards such as the RTX 2060 and RTX 3060, primarily relied on AI-based upscaling and image reconstruction, they were lacking frame generation entirely. DLSS 3, introduced with the RTX 40 Series, did incorporate frame generation but often experienced latency issues and visual artifacts during fast-paced gameplay.

DLSS 4 offers significant advancements through an upgraded transformer model, enhanced Ray Reconstruction, and Multi Frame Generation which can incorporate up to three additional frames for each rendered frame. From our trials with the RTX 5060 in games like “Alan Wake 2” and “Star Wars Outlaws,” we’ve found that DLSS 4 not only boosts performance but does so while maintaining superior graphics quality and minimal input lag.

Additionally, it’s likely that the RTX 5060, despite being advertised as a 1080p GPU, will deliver smooth performance at 1440p in many games, even at high or ultra settings. This is because the game’s reliance on VRAM and rasterization versus DLSS will significantly impact these results. However, the RTX 5060’s features such as Multi Frame Generation and Transformer-based Super Resolution make playing games at 1440p a viable option for this GPU.

ASUS Dual GeForce RTX 5060 Review: Final Thoughts

The ASUS Dual GeForce RTX 5060 graphic card stands out as a practical choice, leveraging NVIDIA’s most affordable 50 Series technology thus far. Its performance, evident in its capabilities, is impressive. When DLSS 4 is utilized to its full potential, the RTX 5060 delivers exceptional gameplay, particularly when Multi Frame Generation is maximized. The ASUS model’s sleek, industrial design adds aesthetic appeal, but it’s the performance that truly impresses, provided gamers are content with enjoying games in 1080p resolution. At a price point of $299, it offers excellent value for 1080p players and has room to grow towards 1440p. For those still using a 3060 or older models, the RTX 5060 is a prudent, forward-looking upgrade.

NVIDIA’s GeForce RTX 5060 and the ASUS Dual version of the same graphics card are now up for grabs, retailing from $299. Game Rant was given a copy of the product for this review.
